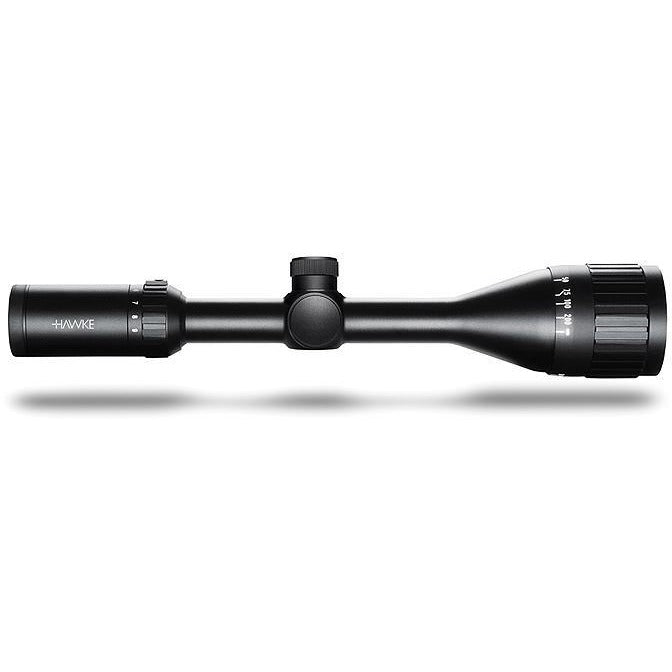

Vantage 3-9X50 AO MIL DOT IR (14232) (HWK-SC-074)

11 layer fully multi-coated optics for excellent clarity. Adjustable objective for parallax correction (AO models). 1 inch mono-tube chassis for superior strength. Glass etched reticle with red and green illumination. Rheostat on saddle offers 5 levels of brightness. 1/4 MOA low profile 'no-snag' fingertip turrets. Fast focus eyebell and high torque zoom ring. Waterproof, Shockproof, Nitrogen purged. All calibre rated. Includes Elasticated Lens Covers, Lens Cloth and CR2032 Battery.

Tube Diameter: 1" Magnification: 3X - 9X
Objective Diameter: 50mm Reticle: Mil Dot Center
Illumination: Red / Green - 5 Levels Focus/Parallax: Adjustable Objective - 9m / 10yds to Infinity
Field of View: m @100m / ft @100yds: 11.2 - 3.6m / 33.6 - 11ft Eye relief: 89mm / 3.5"
Length: 351mm / 13.8" Weight: 595g / 21oz
Material: Aluminum Exit Pupil: 17 - 6mm / 0.7 - 0.2?
Ocular Type: Fast Focus Lens Coating: Fully Multi-Coated - 11 Layers
Power Selector Style: Knurled Posi-Grip Elevation Increment: 1/4 MOA
Elevation Adjustment Range: 90 MOA Windage Increment: 1/4 MOA
Windage Adjustment Range: 90 MOA Turret Caps: Yes
Turret Type: Low Profile
