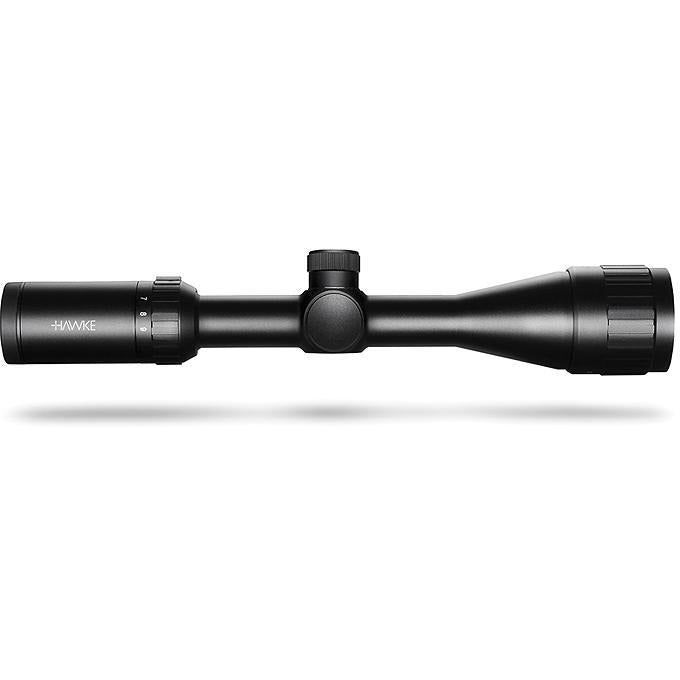

Vantage 3-9X40 AO MIL DOT IR (14225) (HWK-SC-073)

11 layer fully multi-coated optics for excellent clarity. Adjustable objective for parallax correction (AO models). 1 inch mono-tube chassis for superior strength. Glass etched reticle with red and green illumination. Rheostat on saddle offers 5 levels of brightness. 1/4 MOA low profile 'no-snag' fingertip turrets. Fast focus eyebell and high torque zoom ring. Waterproof, Shockproof, Nitrogen purged. All calibre rated. Includes Elasticated Lens Covers, Lens Cloth and CR2032 Battery.

Tube Diameter: 1" Magnification: 3X - 9X
Objective Diameter: 40mm Reticle: Mil Dot Center
Illumination: Red / Green - 5 Levels Focus/Parallax: Adjustable Objective - 9m / 10yds to Infinity
Field of View: m @100m / ft @100yds: 13 - 4.2m / 39 - 12.7ft Eye relief: 89mm / 3.5"
Length: 322mm / 12.7" Weight: 507g / 17.9oz
Material: Aluminum Exit Pupil: 13 - 4mm / 0.5 - 0.2?
Ocular Type: Fast Focus Lens Coating: Fully Multi-Coated - 11 Layers
Power Selector Style: Knurled Posi-Grip Elevation Increment: 1/4 MOA
Elevation Adjustment Range: 100 MOA Windage Increment: 1/4 MOA
Windage Adjustment Range: 100 MOA Turret Caps: Yes
Turret Type: Low Profile
