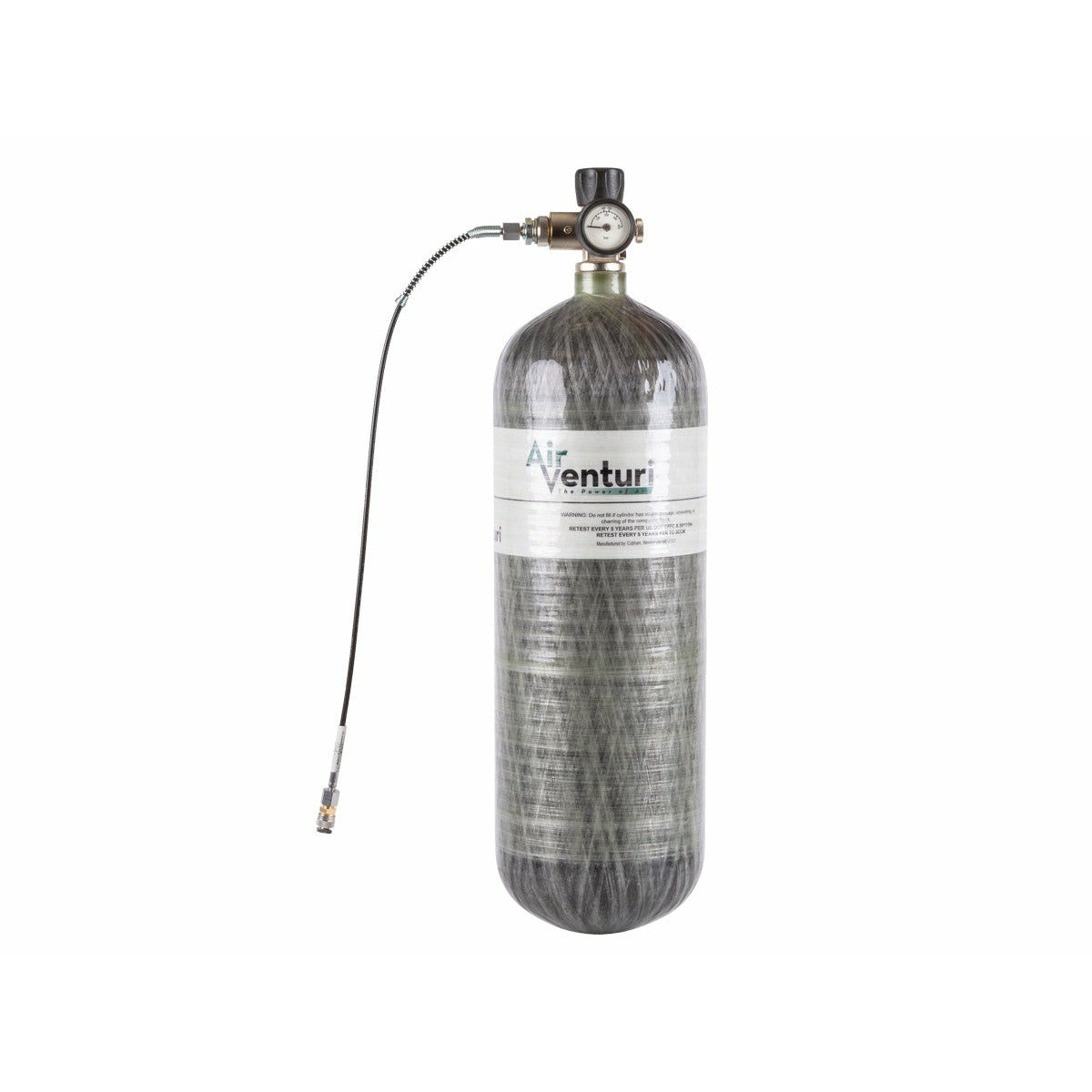

Air Venturi Carbon Fiber PCP Charging Station 98 cu ft (AVN-AC-004)

Sold Out $999.99

Air Venturi Carbon Fiber PCP Charging Station

Assembly includes:

98 cu. ft. carbon fiber tank, 4,500 psi
DIN 300 bar PCP charging station
DIN 300 bar valve with burst disc
Inline pressure gauge 0-6000 psi 1/8" BSPP

Charging Station:

4,500 psi max pressure
24 in. microbore hose with 1/8" BSPP
Male and female threaded ends, each 1/8" BSPP
Stainless steel female quick-disconnect coupling attached to output end of hose
Includes test plug for checking pressure remaining in the tank

Specifications:

Carbon fiber filament wound over aluminum bladder
98 cu. ft. air capacity
4,500 psi max pressure
DOT-approved / DOT-SP 11194
13 lbs. dry weight
7.5" wide
25" tall to top of valve
